CORE-X5
Built for performance in harsh environments
Made for professionals in tough environments, the CORE-X5 can handle energy-intensive apps, guaranteeing constant durability and resistance.
Read all- Compatible with PMR frequencies, 100dB loudspeaker, 4 programmable buttons
- Snapdragon™ 665, 4GB of RAM and 64GB of memory
- Drop-proof to 2m, Waterproof IP68
The charger is not supplied with this smartphone.
Core-X5
Built for performancein harsh environments
-
Technical Communication
![]()
-
Power
![]()
& Endurance -
AER
![]()
-certified -
Ergonomic Design
![]()
& Durability
Level up your life
even in harsh environments
Designed for group communication
Background noise
will never be a problem again.
Communicate clearly and audibly, regardless of the environment around you. The CORE-X5 features a 100dB (decibel) loudspeaker and high-performance microphones with noise cancellation, so it can be used in noisier environments such as an 80,000-spectator football stadium where noise levels can fluctuate between 80 and 100dB.
EBy maintaining a positive signal-to-noise ratio, the 100dB sound power of the Core-X5 loudspeaker gives the user guaranteed communication intelligibility, even in the noisiest settings.
20 X 30mm
Speaker
CORE-X5
Sound
compared to a CORE-X4
13,5 X 6.5mm
Speaker
Standard

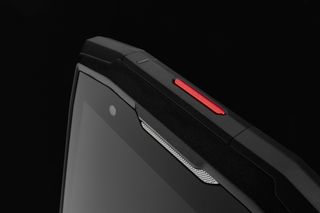

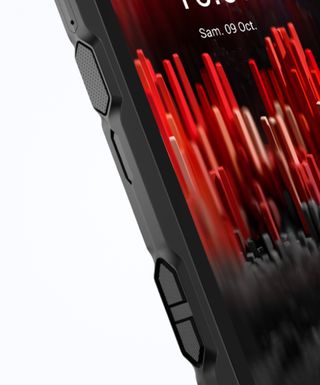

4 programmable buttons for your apps
Designed for group communication in the field with a dedicated "Push-to-Talk" app, the Core-X5 incorporates four programmable buttons that can be assigned to different actions such as "Push-to-Talk" communication, a distress call or a change of conference group.
These programmable buttons have been designed to have a bigger surface (up to 1.5 cm in length) and a heightened pressure of 2N (200g) offering excellent ergonomics with gloves.
And you don't need to worry about pressing them by mistake, as the buttons are carefully positioned and strengthened by protective polycarbonate reinforcements.
Built to last, they are able to withstand more than 700,000 presses throughout their five-year warranty, the equivalent of 400 presses a day for five years.
Make the CORE-X5 the tailor-made solution for your business
Two days' battery life in average use
Looking for some accessories? You're
in the right place.
and make it part of your everyday routine thanks to CROSSCALL's X-LINK™ technology and accessory ecosystem designed to improve and intensify your daily life.
more powerful processor (2)
Every aspect of your life in perfect osmosis. You can now combine professional and personal use on a single phone thanks to the CORE-X5's triple SIM slot (2 NANO SIMs + 1 MicroSD).
On your travels? Use the second SIM card slot to temporarily sign up to a local plan abroad.
Triple slot
512Go
Nano SIM
Android Enterprise Recommended certification confirms that the device meets Google's strict enterprise requirements.
YOUR OFFICE
ANYWHERE WITH
X-SPACE

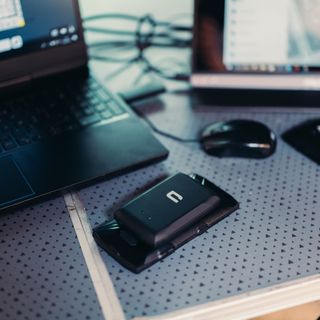

Turn your smartphone into a computer with X-SPACE! Connect to any screen and benefit from a desktop interface as comfortable and functional as a computer.
Record
your
achievements
Scan quickly and efficiently and capture every detail even in low light. his technology combines 4 pixels in 1 to capture additional light, so you can take photos and scan more easily in low light.

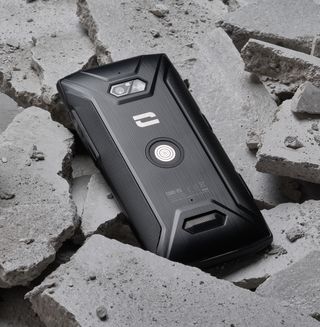

The smartphone built to last

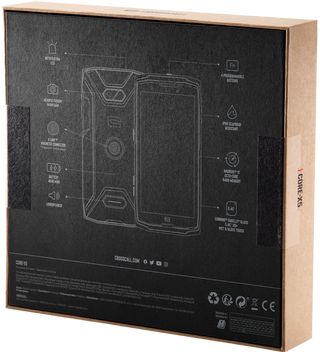

A sustainable solution
A five-year manufacturer's warranty
With the CORE-X5, you can relax. With a five-year warranty - including for its battery - this is a phone you can rely on. It won't lose its value, require you to limit your use, or restrict the environments you may come across.
The height of repairability
Extend the life of your smartphone. Special attention has been paid throughout the design process of the CORE-X5 to ensure that its components can be easily replaced by accredited repair centres.
10 years
spare parts availability
The most waterproof product on the market
The most waterproof product on the market
Elastomeric caps protect the connectors, the seal prevents water from infiltrating, and screws ensure the product is hermetically sealed. Thanks to its IP68 waterproofing, you can take the CORE-X5 with you wherever you're required to go - whether it be an extremely humid environment or even under water, your phone will be by your side.
Tested... sin the field!
A screen suited
to your daily life
-
Glove
![]()
Touch
Use with
gloves -
Wet
![]()
Touch
Use with
wet hands -
IK05
![]()
Scratch resistance
of 0,7 joules -
Screen
![]()
5.45
80% of the surface
accessible with the thumb
Doing our bit for the planet
x-link
mounting technology
Enhance your experience with X-LINK™ technology (4), a magnetic mounting system on the back of the CORE-X5. Using this quick and easy system, you can connect and secure your smartphone to an entire ecosystem of accessories designed to simplify use and intensify your adventures.

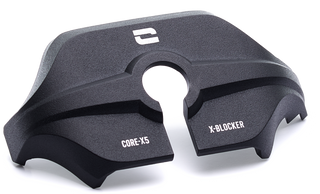

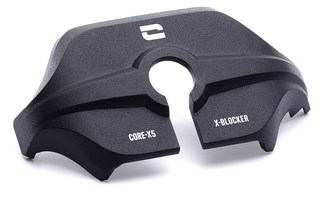

X-BLOCKER,
mechanical reinforcement
Magnetic attachment and easy positioning in portrait/landscape mode
Fast and efficient charging, 98% power transfer
Easy to use. No need for cables! One-step attachment, charging and data transfer
Team it with...
This reinforced harness allows you to keep your smartphone attached to your chest at all times.
(1) Power consumption measurements carried out in the laboratory against a panel of competing smartphones.
(2) Power compared to the CORE-X4, from the previous generation.
(3) From the date of marketing of the product
(4) Magconn Technology
USEFUL LINKS
CHARACTERISTICS
Everything you need to know about the CORE-X5 can be found here :
| OUTDOOR SPECIFICATIONS | |
|---|---|
| IP standard | IP 68 |
| Resistance to salt water | 2m/30min |
| Dustproof | IP6X |
| Operating temperature | -25°C / +60°C |
| Resistance |
US MIL-STD-810H (15 tests) Drop Test (6 sides, 2m) |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Dimensions / Weight | 163 x 78 x 14.5 mm / 256 g |
| Colour | Black |
| Operating System | Android™ |
| Version / Zero-Touch / AER | 11/ Y / Y |

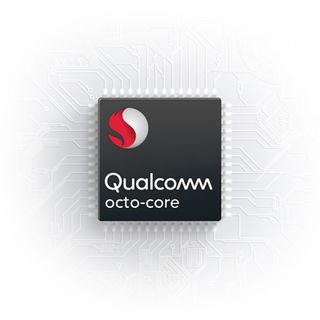

| Processor | Qualcomm® Snapdragon™ 665 (SM6125) |
| Type | OCTO-CORE (4xA53 @1.8GHz + 4xA73 @2 GHz) |
| SAR Head / Body | 1.335W/kg - 1.521 W/kg |
| SAR Limbs | 3.041 W/kg |
| Languages | German, English, Arabic, Chinese, Croatian, Danish, Spanish, Estonian, Finnish, French, Hungarian, Italian, Latvian, Lithuanian, Dutch, Norwegian, Polish, Portuguese, Serbian, Slovak, Slovenian, Swedish, Czech |
| SCREEN | |
|---|---|
| Size | 5.45’’ - 18/9 |
| Type | IPS - Corning Gorilla® Glass 3 |
| IK standard | IK05 |
| Touch screen | Capacitive screen, 5 points Wet & Glove touch |
| Resolution | 1440x720 HD pixels+ |
| Brightness | 500 cd/m2 |
| BATTERY | |
|---|---|
| Type | Lithium Polymer |
| Capacity | 4940 mAh Typ |
| Talk time (2G/3G) | 32 hrs 4 mins |
| Battery life in standby time (4G) | 31 days |
| Battery life in GPS mode* | 14 hrs 55 mins |
| Reverse charge | Yes, via USB type-C port (USB-Power Delivery) |
* GPS + DATA + GOOGLE maps enabled + 100% screen brightness
| CHARGER | |
|---|---|
| Brand | Crosscall |
| Model | TPA-147A050200VU01 (CH-21E) |
| Input voltage | 100-240V ~ |
| Input AC frequency | 50/60Hz |
| Output voltage | 5,0V ⎓ |
| Output current | 2.0A |
| Output power | 10.0W |
| Average efficiency in active mode | 81.03% |
| Efficiency at low load (10%) | 80.33% |
| No load power consumption | 0.045W |
| MEMORY | |
|---|---|
| RAM / Flash | 4 GB / 64 GB |
| External (Micro SD) | max 512 GB (sold separately) |
| NETWORK & CONNECTIVITY | |
|---|---|
| SIM | Triple drawer: 2 SIM + 1 micro SD |
| Type | Nano SIM |
| 2G (GPRS/EDGE) | 850/900/1800/1900 MHz |
| 3G (HSPA+) | 850/900/1900/2100 MHz |
| 4G (LTE) | FDD-LTE bands: Band 1(2100) / 2(1900) / 3(1800) / 5(850) / 7(2600) / 8(900) / 20(800) 28 fullband (700) /32(1500) CA down only TDD-LTE bands: Band 38(2600) / 40(2300) |
| VoLTE | Compatible ** |
| VoWIFI | Compatible ** |
| WIFI | 802.11a;802.11b; 802.11g; 802.11n; 802.11ac; 802.11k; 802.11r; 802.11v; 802.11u 2.4 GHz and 5 GHz |
| Bluetooth® | 5.0 |
| NFC | Yes, payment feature |
| USB | Type-C 3.2 Gen1 |
| OTG | Yes |
| X-LINK™*** | Yes |
** To be validated with the operator’s technical teams
*** Magconn Technology
| PHOTO | |
|---|---|
| Rear camera | 48 MP Fusion4 |
| Front-facing camera | 8 MP |
| PDAF Autofocus | Yes |
| Flash | LED |
| Supported formats | JPEG, GIF, PNG, BMP |
| VIDEO | |
|---|---|
| Resolution | 4K @30fps |
| Supported formats | MPEG4, H.264, H.265 |
| AUDIO | |
|---|---|
| Headphone Jack | 3.5mm waterproof headphone jack |
| Supported formats | AMR, MIDI, MP3, WAV, AAC |
| Microphone | Waterproof microphone, GORE membrane |
| Loudspeaker power | 100 dB |
| LOCATION SERVICES | |
|---|---|
| GPS | Yes |
| Type | GPS, A-GPS, Glonass, Beidou, Galileo |
| SENSORS | |
|---|---|
| Accelerometer / G-Sensor | Yes |
| Proximity sensor | Yes |
| Light sensor | Yes |
| Gyroscope | Yes |
| Magnetometer / E-Compass | Yes |
| FEATURES | |
|---|---|
| Play store™ | Yes |
| Google™ Services | Yes |
| Hands-free | Yes |
| Voice recorder | Yes |
| Alarm clock | Yes |
| FM Radio | Yes (requires wired headphones) |
| Flashlight | Yes |
| Customisable multifonction button | Yes, 4 |
| QR code reader | Yes |
| SOS function | Yes |
| Torch | Yes |
| Fingerprint reader | Yes |
| Light indicator | Yes, multicoloured, LED |
| QUALITÉ ET CARACTÉRISTIQUES ENVIRONNEMENTALE DU PRODUIT | |
|---|---|
| Incorporation de matières recyclées | |
| Recyclabilité | |
| Présence de métaux précieux | Contient au moins 163 mg de métaux précieux |
| Présence de terres rares | Contient au moins 57 mg de terres rares |
| Présence de substances dangereuses | |
| Information sur les primes et pénalités | |
| Substances définies par l'ANSES | |
| Présence de perturbateurs endocriniens | |
| Tantale dans les condensateurs | entre 0.01 g et 0.1 g |
| Néodyme dans les haut-parleurs, moteurs à vibration et autres aimants | entre 0.05 g et 0.2 g |
| Or dans tous les composants | entre 0.02 g et 0.05 g |
| Substance extrêmement préoccupante (SVHC) si présente | |
| Qualité et Caractéristiques environnementales de l'emballage/notice | |
|---|---|
| Incorporation de matières recyclées | Emballage comportant au moins 63% de matières recyclées |
| Possibilité de réemploi | |
| Recyclabilité | Emballage et notice majoritairement recyclables |
| Présence de substance dangereuse | |
| Information sur les primes et pénalités | L'emballage fait l’objet d’une prime relative à l'incorporation de matières recyclées |
| Substances définies par l'ANSES | |
| Présence de perturbateurs endocriniens | |
| Qualité et Caractéristiques environnementales de la batterie | |
|---|---|
| Incorporation de matières recyclées | |
| Recyclabilité | Batterie majoritairement recyclable |
| Présence de substance dangereuse | |
| Substances définies par l'ANSES | |
| Information sur les primes et pénalités | Ce produit fait l'objet d'une prime liée à la technologie lithium-cobalt |
| Présence de cobalt | Plus de 10 g |
